Meter Events
Netstream not only collects readings from meters, but also reports events. Meter events are categorised in a manner that divides the enumerated code into three parts: Category, Sub-category and Event or Action.
This screen is reached from the View events
context menu on the Meters screen

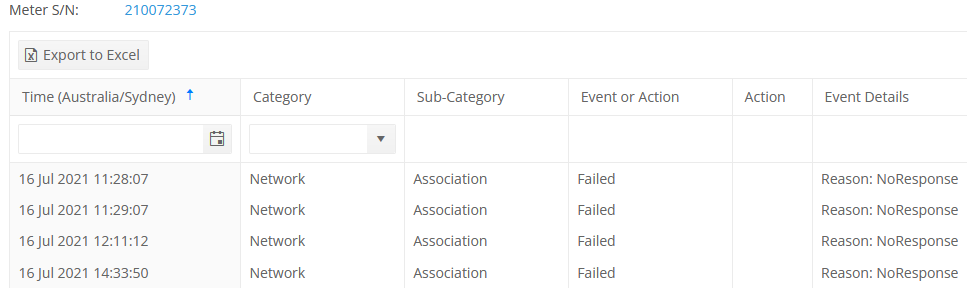

A sample screenshot is shown below for meter serial number 210072373.
Column Name | Description |
---|---|
Time | The time at which the event or action occurred |
Category | This provides an indication as to the high-level nature of the event or action |
Sub-Category | A further sub-division of event categories |
Event or Action | The most specific part of an event categorisation. Generally in the form of a verb that gives action to the event that just occurred. |
Action | If true indicates this event occurred as a result of an operator's action. Otherwise, the meter originated the event. |
Event Details | Certain events require or contain more details than just a description and a category. For example, specification of a particular channel number, alarm number, relay number, port number, formula number, version number, etc. |
